Applications of generative adversarial networks (GANs) in radiotherapy: narrative review

Introduction

Radiation therapy (RT) is the most used method for cancer treatment, which aims to deliver the prescribed dose to the planning target volumes (PTVs), while simultaneously reducing at minimum the dose to organs-at-risk (OARs) (1). Obtaining a clinically acceptable RT treatment plan often requires a long time, tedious work, and a high level of physician/technician experience (2).

The general steps to perform RT planning include [computed tomography (CT)/magnetic resonance imaging (MRI)/positron emission tomography (PET)] image acquisition, contouring of treatment area (gross tumor volume, OARs, etc.), treatment plan optimization, and treatment delivery.

However, there are still some challenges: first, sometimes a diagnosis is performed on magnetic resonance (MR) scans because of better soft-tissue contrast, but a CT is always required to make a plan. Second, contouring and treatment planning is time-consuming and dependent on expertise which is prone to inter-observer variability. Finally, in-room imaging is of a lower quality than diagnostic CT.

In the last 10 years, the RT research community has focused on optimizing and automizing the above-presented steps by using artificial intelligence (AI). With the development of computer science, deep learning (DL) algorithms, a branch of AI, are widely applied by researchers to solve the above-mentioned issues. Generative Adversarial Networks (GANs), a subset of DL, became popular in the medical imaging domain, mainly for synthetic data generation (2). Since GAN was proposed in 2014 by Ian Goodfellow (3), it has been widely used by an increasing number of applications in standard of care medical imaging, especially in CT, MRI, and plays a great role in RT (4). A deep understanding of GANs requires specific knowledge of computer science, often not available at RT clinics.

Therefore, in this review, we will introduce the development of the GAN models, their structures, their improvements, and their applications in RT which can help the researchers have a preliminary knowledge about these DL models.

For readers interested in a specific application of GANs, we have grouped the GAN applications into three clusters: CT translation and synthesis (see later GANs for synthetic imaging), dose and plan calculation (see later GANs for dose and plan calculation), and image quality improvement (see later GANs for quality improvement). Finally, we have discussed the limitations and future directions to give some hints for the following researchers who want to develop GAN applications in RT. We present the following article in accordance with the Narrative Review reporting checklist (available at https://pcm.amegroups.com/article/view/10.21037/pcm-22-28/rc).

Methods

The search was performed from PubMed and IEEE Xplore datasets according to multiple keyword combinations and the related MeSH terms including: “Radiotherapy”, “generative adversarial network (GAN)”, and “application”. January 1, 2018, was set as the cut-off date because we only considered the research within 5 years. The inclusion criteria were: original research articles (proceedings included), English language, and the development of a GAN model using a RT dataset. One hundred publications were extracted according to the search string above. Two researchers with expertise in DL, quickly scanned the abstracts to exclude irrelevant articles. Subsequently, we scanned the reference list from the selected articles to include the related ones which were not found by the initial search. Finally, 23 articles refer to the applications of GANs in radiotherapy, most of which were appropriately referenced in this review (Table 1).

Development of generative adversarial models

GANs are inspired by game theory. The basic structure of the GANs model is shown in Figure 1A. It is composed of a generator G and discriminator D and it aims to optimize these components alternately according to the Minimax game logic until they can’t beat each other (Nash equilibrium).

Figure 1 The structure of GANs model. (A) GAN; (B) CGAN; (C) Cycle GAN. G and D are respectively the generator and discriminator. x and y present the real data come from different dataset. z present random noise. G and F are the Generator. D, Dx, and Dy are discriminators. c is the class information of x. GAN, Generative Adversarial Network; CGAN, Conditional GAN; Cycle GAN, Cycle-consistent Generative Adversarial Networks.

The generator G takes as input a vector z obeying the standard normal distribution N(0,1) and creates the target data distribution G(z). The goal of generator G is to synthesize new data in such a way that the discriminator D cannot distinguish it from a real one. The discriminator D can be seen as a classification network that distinguishes whether this new input data is real or not.

The Nash equilibrium is reached when the generator G synthesizes data G(z) hard to distinguish from the real ones and the discriminator D can classify real and fake data with high precision.

In the process of training, indeed, the update of the generator G tries to make the synthetic data classified as the real ones, so that the synthetic data is closer to the decision boundary and the real image. While, the discriminator D plays the role of a binary classifier, and each update of the discriminator enhances its ability to distinguish between real data and synthetic data, which means dividing the correct decision boundary between the two kinds of data. With the continuous training of alternate iterations, the synthetic data will close to the real image, which will eventually make them indistinguishable to the discriminator D, so that the generator G can fit the real data with a high degree of realism.

However, the basic GAN generates data from noise so there are still some shortcomings: first, the class of the generated data cannot be controlled and, secondly, the transferring between two different clinical imaging modalities cannot be done by a basic GAN. To overcome these problems, some improvements to GAN based model were made.

Conditional GAN (CGAN)

In the training processing of GAN, the random noise Z is used as a priori information in the comparison training process, which greatly improves the calculation efficiency when the amount of data is too large. However, too much random noise will lead to the uncontrollability of the training process and experimental results, which greatly reduces the accuracy of the network. To solve this problem, supervised learning or semi-supervised learning is added based on GAN to effectively restrict the generation process and increase the stability of the network during training. CGAN is such an improved model (1). The CGAN structure shown in Figure 1B.

Cycle-consistent Generative Adversarial Networks (Cycle GAN)

In the real world, it is difficult to obtain a large amount of paired image data that arises from the same individual at different modalities or machines. Therefore, Zhu et al. proposed the Cycle GAN in 2017 to solve the problem of converting the images between different modalities with unpaired data (2).

The Cycle GAN consists of two identical GAN models with a generator and discriminator respectively. The generator is trained for getting a mapping between data source distribution x and y.

The discriminators are the same as the traditional GAN model to determine whether the data is real or synthetic. The structure of the Cycle GAN structure is shown in Figure 1C.

x, z, and G(z) represent respectively the real data, the input data, and the synthetic data generated by generator G.

For Figure 1C, F and G present two generators that generate fake data from y and x. The Dx and Dy present the discriminators for distinguishing between real and fake data created by the generators.

Evaluation metrics

The evaluation metrics needed to evaluate the quality of the synthetic data in GAN-based radiotherapy applications are divided into three different groups: image similarity, dose performance, and plan evaluation (shown in Table 2). They can be selected according to the specific RT tasks.

Evaluation metrics for calculation similarity between synthetic data and target

Normally, it is difficult for human eyes to evaluate the similarity between synthetic images and the target ones. These metrics can quantify the similarity between them are shown in Table 2 image-related metrics.

The mean squared error (MSE) and mean average error (MAE) are the metrics that refer to the expected value of the difference between the synthetic and target data. The higher score means the bigger difference between them. The peak signal to noise ratio (PSNR) represents the ratio of the energy of the peak signal to the average energy of the noise. The higher the score, the smaller the distinction between target and synthetic data.

The above metrics only calculate the gap between one-to-one correspondence pixels without considering the other positions. This treats the image as isolated pixels, while ignoring visual features, especially the local structural information. The structural information has great influence on the subjective evaluation of medical images.

Conversely, to address above shortage, the structural similarity index measure (SSIM) considers a region of pixels when calculating the difference between two images. When the two images are identical, the value of SSIM is equal to 1.

To align more the quantitative evaluation of image similarity to the visual inspection, the learned perceptual image patch similarity (LPIPS) (5) was proposed also known as perceptual loss. It is used to measure the difference between two images in subject feeling contains rich image information such as texture color and texture primitives. The lower the value of LPIPS, the more similar the two images are.

Evaluation metrics for synthetic dose performance

This type of evaluation is different from the evaluation method which compares the similarity between the real target and the synthetic data. The similarity metrics are not the best method considering the evaluation method between synthetic and target doses. Based on the aforementioned motivation, to evaluate the performance of the synthetic dose, the commonly used methods are shown in Table 2 (dose-related metrics).

Dose-volume histogram (DVH) difference compares the difference of the DVH in RT planning between the generated and the real one. The lower the score, the more realistic the generated doses are. Moreover, the Hausdorff distance also can be used to calculate the difference between the synthetic DVH and the real one.

Evaluation metrics for plan evaluation

For evaluation of the feasibility of the generated plan, a comparison between the real and generated plan is required (shown in Table 2, plan-related metrics). Furthermore, the conformity index (CI) and homogeneity index (HI) scores that can evaluate the conformity and uniformity of dose distribution also should be considered. Averaged prediction error (APE) calculates the averaged ratio of the prescription dose and the difference between the ground truth and the prediction (4).

Generative adversarial models for CT translation and synthesis

Different modalities of medical images can provide multimodal information, that can be used for a better diagnosis and RT planning.

However, in a realistic situation, limitations due to unnecessary costs and radiation protection of the patient, make it hard to collect all the desired imaging modalities from a single patient. Fortunately, while there is a different focus and range distribution between modalities, there is still some hidden information in one type of image that may prevent the need to take another one. This is why the cross-mode image synthesis method is feasible (6).

For treatment planning, CT is always required, while delineations are often performed on MR, for example for pelvic or head and neck tumors. However, the transformation from MR to CT will lead to an undesirable 2–5 mm systematic error (7).

To address the systematic error, MR-only treatment planning was proposed, in which only MRI is required as the sole input modality. It can protect the patient from CT radiation doses and benefit a pediatric patient who has less dose upper (8).

The GAN-based method has the feasibility of mapping the information and generating the image from different modalities. GAN can generate synthetic CT (sCT) from MRI, thanks to allow performing the calculation of the dose accuracy with a single MRI-only workflow.

For sCT methods, Liu et al. [2019] tried to integrate dense block into three-dimensional (3D) Cycle GAN to effectively generate the CT from T2-weighted MRI. Dense block connects all blocks that make up the model directly into each other, leading to each block gets additional inputs from all previous blocks and passes on its own output to all subsequent blocks. This ensures the maximum transmission of information between blocks in the model (see in Figure 2A). The proposed method achieved 51.32±16.91 Hounsfield unit (HU) and less than 1% DVH difference compare to the one generated by real CT. This demonstrates the feasibility of GAN-based applications for the development of the MRI-only workflow for prostate proton radiotherapy (9).

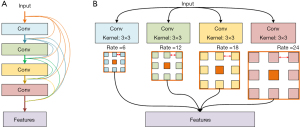

Figure 2 The structure of blocks. (A) Dense block; (B) ASPP block. Conv presents the convolutional layer. ASPP, atrous spatial pyramid pooling.

To evaluate whether the sCT is accurate enough for MRI-only treatment planning, Kazemifar et al. [2020] used mutual information (MI) which is used to evaluate non-linear relations between two variables as the loss function in GAN to overcome the misalignment between two modalities in training model processing. In fact, one of the largest issues when translating MR to CT is that the two images belong to different spaces: the frequency one and the tissue density respectively. The above methods achieve a mean absolute difference below 0.5% (0.3 Gy) for the prescription dose for CTV and below 2% (1.2 Gy) for OARs. The excellent result illustrates that GAN is a potentially promising method to generate sCT for MRI-only treatment planning of patients with brain tumors in intensity-modulated proton therapy (10,11).

Zhang et al. [2018] proposed a Cycle- and Shape-Consistency GAN to synthetic realistic looking 3D images using unpaired data and improve the volume segmentation by generated data. With the extensive experiment on a 4,496 CT and MRI dataset, it proves that both tasks are beneficial to each other, and coupling them has better performance than exclusively (12).

In another study, Olberg et al. [2019] designed an atrous spatial pyramid pooling (ASPP) structure in GAN model. ASPP is a structure that captures objects and image features on multiple scales, thanks to the introduction of multiple filters that have complementary effective fields of view (as shown in Figure 2B).

The proposed method achieved a root mean square error (RMSE) (17.7±4.3), a SSIM (0.9995±0.0003), a PSNR (71.7±2.3), and great dose performance based on sCT with more than 98% passing rates in the 1,042 images test set. The excellent result illustrates the designed structures can improve the performance of traditional GAN (13).

Meanwhile, different from traditional sCT which is generated from a single MR sequence, Koike et al. [2020] tried to generate and assess the feasibility of sCT from multi-sequence MRI using GAN for brain radiotherapy treatment planning. With the small, clinically negligible difference (less than 0.1% DVH difference and 0.6±1.9 mm overall equivalent path length difference), CGAN is feasible to generate sCT from multi-sequence include T1-weighted, T2-weighted and fluid-attenuated inversion recovery (Flare) MRI (1).

Bourbonne et al. [2021] was the first study which demonstrate the GAN-generated CT from diagnostic brain MRIs have comparable performance to initial CT for the planning of brain stereotactic RT. In their study, the two-dimensional (2D)-UNet was selected as the backbone of generator. Through experiments on a dataset of 184 patients, there were no significant statistical differences regarding International Commission on Radiation Units and Measurements (ICRU) 91 s endpoints, which means the sCT and initial CT has high similarity for both the organs at risk and the target volumes (14).

On the other hand, the time cost is also worth considering the feature of radiotherapy applications.

Maspero et al. [2018] tried to assess whether the GAN method can rapidly generate sCT to be used for accurate MR-based dose calculations in the entire pelvis. As the result, the CGAN required 5.6 s and 21 s for a single patient on graphics processing unit (GPU) and central processing unit (CPU), respectively. It achieves less than ±2.5% calculated DVH differences on sCT and CT. Results suggest that the sCT generation was sufficiently fast and accurate to be integrated into an MR-guided radiotherapy workflow (15).

The 8 key publications focusing on GAN application for CT translation and synthesis are presented in Table 3.

Generative adversarial models for dose and plan calculation

The RT planning is highly dependent on the clinical experience and skills of the radiotherapy physicist or dosimetrist, as well as their knowledge of radiotherapy physics and understanding of the treatment planning system (TPS). With advances in DL, especially GANs, automatically generating 3D RT dose distributions from medical images like CTs and MRIs became possible. In the past few years, several methods can generate dose distribution or intensity-modulated radiation therapy (IMRT) plans from different kinds of inputs.

To overcome a limited dataset situation for a DL task, Liao et al. [2021] proposed an Auxiliary Classifier GAN (ACGAN) to synthesize dose distribution according to tumor types and beam types. The proposed with excellent PSNR (75.6032) and multi-scale SSIM (MS-SSIM) (0.95120) results, that demonstrate the synthetic dose distribution is close to the real one which can be used for increasing the training set for dose prediction tasks (16).

In order to different organs to jointly constrain the dose distribution of each organ in model training to achieve better PTV dose coverage and OARs sparing. Cao et al. [2021] (4) designed an adaptive multi-organ loss (AML)-based Generative Adversarial Network (AML-GAN). The AML loss can measure the gap between synthetic dose and real one on whole dose, OAR and PTV distribution. The experiment demonstrates the proposed method achieves state-of-art APE (0.021±0.014) in terms of OARs and PTV (16).

Dose calculation is a time-consuming task, which sharply decreases the RT workflow efficiency. Therefore, some GAN-based dose simulation methods to decrease the time cost and generate accurate dose distribution were proposed.

In another work, Li et al. [2021] designed a CGAN-based model which can real-time generate fluence map from CT. This model containing a novel PyraNet that implements 28 classic ResNet blocks in pyramid-line concatenations as the generator. The proposed method was evaluated on 15 plans, the AI model only cost 3 s to predict a fluence map without statistical significance from the real one. This approach holds great potential for clinical applications in real-time planning (17).

While Zhang et al. [2021] proposed a discovery cross-domain GAN (DiscoGAN) to generate comparable accuracy to Monte Carlo simulation without much time cost. The proposed method was evaluated on abdominal cases, thoracic cases, and head cases by mean relative error (MRE) and achieved no systematic deviation. It demonstrates the proposed method has great potential for accurate dose calculation compared to the Monte Carlo simulation method (18).

For relative stopping power (RSP) prediction application, Harms et al. [2020] used a Cycle GAN, relying on a compound loss function designed for structural and contrast preservation, to predict RSP maps from cone beam CT (CBCT). With the result of a MAE (0.06±0.01) and a ME (0.01±0.01) between RSP generation from CT and CBCT, this method provides sufficiently accurate prediction which makes CBCT-guided adaptive treatment planning for IMPT become feasible (19).

The 5 key publications focusing on GAN application for dose and plan calculation and synthesis are presented in Table 4.

Generative adversarial models for quality improvement

Traditional medical image enhancement methods are mainly used to improve medical images with low contrast, narrow dynamic range, uneven intensity distribution, and blurred edges. This is given by studying effective image enhancement algorithms to improve the image quality of existing medical images, improve their resolution or emphasize the important texture information and suppress noise. After those passages, the images become more standard and suited for computer-aided diagnosis (CAD) systems.

Medical images can be acquired with different methods according to the need that doctors have to treat a particular case. Moreover, medical image data is much more complicated than natural image data, and it is difficult to get detailed information directly on the original data. These characteristics mean that medical images have a relatively greater demand for image enhancement algorithms that are beyond the capabilities of traditional algorithms.

In these cases, the GAN-based models can improve the quality of medical images (e.g., denoising).

Several GAN-based methods are trained using paired data. Charyyev et al. [2022] designed a residual attention GAN to synthetic dual-energy CT (DECT) from single energy CT (SECT). The MAE, PSNR, and normalized cross correlation (NCC) were applied to evaluate the performance of the synthetic high- and low-energy CT was 36.9 HU, 29.3 dB, 0.96 and 35.8 HU, 29.2 dB, and 0.96, respectively. The proposed method has potential feasibility for proton radiotherapy by generating DECT from SECT (20).

In another study, Zhao et al. [2020] designed a supervised GAN with the Cycle-consistency loss, Wasserstein distance loss, and an additional supervised learning loss, named S-Cycle GAN, to synthetize full-dose PET (FDPET) from low-dose PET (LDPET). The model was evaluated in 10 testing datasets and 45 simulated datasets by NRMSE, SSIM, PSNR, LPIPS, SUVmax and SUVmean, and the results show this method achieves accurate, efficient, and robust performance (21).

A study by Lee et al. [2021] used Cycle GAN to synthetic kilovoltage CT (KVCT) from megavoltage CT (MVCT). With the excellent average MAE, RMSE, PSNR, and SSIM values were 18.91 HU, 69.35 HU, 32.73 dB, and 95.48, respectively. This Cycle GAN can improve the MVCT to KVCT while maintaining the anatomical structure in radiation therapy treatment planning (22).

For CBCT improvement, some methods can synthesize target images from unpaired data.

Uh et al. [2021] applied Cycle GAN to correct abdominal and pelvic CBCT between children and young adults in the presence of diverse patient sizes, anatomic extent, and scan parameters. The performance of the model has significantly outperformed performance in the 14 patients’ test set (47±7 versus 51±8 HU; paired Wilcoxon signed-rank test, P<0.01). This proposed method can decrease the impact of anatomic variations in CBCT images for proton dose calculation (23).

Park et al. [2020] designed a spectral blending technique to combine trained sagittal and coronal directions Cycle GAN to sCT from CBCT. The proposed method achieves better performance than the existing Cycle GAN on PSNR (30.6027 versus 29.4991), NMSE (1.3442 versus 1.5874), and SSIM (0.8977 versus 0.8674) (24).

Liu et al. [2020] designed a self-attention Cycle GAN to sCT from CBCT. There is no significant different performance between the CT-based contours and treatment plans from sCT on MAE and DVH differences. The result indicates that the sCT from CBCT can be used for accurate dose calculation (25).

Except self-attention, Gao et al. [2021] proposed an attention-guided Cycle GAN which contains two equipped with attention module generators to generate attention mask. It can make generator pays attention to the important part of images to eliminate numerous artifacts. By training and testing on a dataset of 170 patients, the proposed method has similar quality with real CT in MAE (43.5±6.69), SSIM (93.7±3.88), PSNR (29.5±2.36), mean and standard deviation (SD) HU values (P<0.05). Besides that, sCT provided the highest gamma passing rates (91.4±3.26) in dose calculation compared with GAN methods. These demonstrate that the proposed method can trained by unpaired data to generate high-quality CT from CBCT (26).

The 6 key publications focusing on GAN application for quality improvement are presented in Table 5.

Discussion

This review clusters the recent GANs application in RT articles into three groups: CT translation and synthesis, dose and plan calculation, and image quality improvement.

Among the included studies, in terms of treatment sites, the majority focused on the head and neck (10/23). This was followed by the abdomen (8/23) and the thorax (5/23).

In RT applications, compared with the traditional handcraft method, GAN brings a potential significant improvement. The GAN model was trained to attain target high-level information distribution rather than simple geometrical and texture deformations. That makes GAN capable of establishing a nonlinear mapping between two different modalities for image translation tasks such as MR and CT or CBCT and CT.

Besides the accuracy prediction, the GAN model has less time consumption compared with traditional methods such as Monte Carlo simulation. The GAN applications can only cost a few seconds per patient which is an unimaginable performance using traditional methods. This will enormously increase the efficiency of RT.

All the publications mentioned in this review prove that GAN applications have great performance in modality translation, dose calculation, and image quality improvement tasks by maintaining anatomical and functional information, which has great benefits in RT workflow.

However, the training of GAN models is a challenging task, as it contains two models (generator and discriminator) with their own opposite targets. It differs from traditional DL model which contain a clear target, such as classification model that can stop training when it can achieve high accuracy in validation sets.

Therefore, in order to train the model, the discriminator should train first to make it has a preliminary classification ability to recognize real data from just noise images. Thanks to this preliminary training it is then possible to train the generator and so the whole GAN model. Then, the final training (adding generator) can stop when the accuracy of discriminator retains 0.5 or the loss function of discriminator is unable to continue descent, that means the discriminator can no longer distinguish between real and synthetic data given by generator.

The setting of hyper parameters also significantly affects whether the model can be successfully trained. Important hyper parameters to take in consideration are batch size (BS), learning rate (LR), epochs and optimizer.

BS means the number of data feed to the model in per step of training, which should be the first determined hyper parameter. Too small and too large BS could cause problems of too long training time or difficult convergence of the model, respectively. Though the ratio of image size and GPU’s memory will significantly limit the large of BS, the number around 10 is recommended as BS initial setting (27).

The epochs represent the number of times that model is trained on the whole data set. The larger epochs, the more time consumption is required for training. Therefore, 100 epochs were recommended to make the model get sufficient training without too much time consumption.

The optimizer is the algorithm that modifies the weights of the DL model during the training phase and the LR determines how much every iteration influences the weights of the model.

For the optimizer and LR, the adaptive moment estimation (Adam) optimizer and LR at 1e–4 are recommend and widely used as initial settings.

And, it is worth noting that, addition to the hyper parameters of the GANs model, the physical difference (contrasts, scanners, and patients, etc.) which often not included during training also have a significant impact on the performance of the generated images. Especially for MR images, image contrast, or absolute image pixel values highly rely on scanning parameters and scanners, which makes the algorithm more difficult to train, less robustness, harder to migrate the model to data generated by other scanners, making it difficult to be widely used. Fortunately, there are many traditional and DL based image harmonization methods (adjusting the distribution of images from different sources so that they are close to each other) can overcome the above problem (28-30).

In order to develop and train a GAN model, there are many open-source DL framework can be selected such as Pytorch, Keras, Tensorflow and Caffe. Among them, Pytorch developed by Facebook is the most widely recommended framework by DL researchers.

Thank to convolutional neural networks (CNN), the GAN model can learn the specific tissue and organ textures from the training sets such as brain, breast, and pelvic which is impossible in the traditional handcraft method. It makes GAN automatic maintain useful anatomical and functional details to achieve excellent performance.

But there are still some potential risks for GAN applications in medical imaging tasks. sCT still remain some dimly visible artifacts in top and bottom areas in some applications (24). And GAN’s tasks are highly dependent on data quality and quantity which make them have difficulty with nonstandard patient anatomies (7).

Although many studies (9,13,15,25,31,32) have conducted distribution comparison between synthetic and real one or validated their models in simulated clinical settings and have shown great potential to apply it in the real world. It still needs more evidence to apply it in the clinic, such as conducting clinical trials or embedding it into TPSs to validate its application in daily clinical practice. Setting these exciting results aside, there are still some technical barriers that need to be overcome. For example, for MRI-based generation of sCT, organ effects such as organ motion (13,32) and organs containing cavities (15) will have an impact on the accuracy of the results or require manual intervention (11,13), which needs to be supported by more relevant studies, such as advances in deformable alignment techniques. Therefore, we consider that the application of GANs techniques requires a series of synergistic developments from a technical point of view to be accomplished.

Another important consideration is the choice of the GAN model, that is influenced by the typology of task it has to face. As the most common selected model (shown in Figure 3), the Cycle GAN has great advantages over the other two GAN models for unpaired data sets. It is composed of two independent GANs which makes obtaining two different modalities of information distribution become feasible without requiring a one-to-one correspondence. This will significantly decrease the difficulty for the researchers to build a large enough dataset for training. The basic GAN instead, is the second most selected model. It has the simplest structure which makes it the researchers easier to build their own model to address specific tasks. Finally, the CGAN with additional information as input can be used in the multi-class transformation tasks.

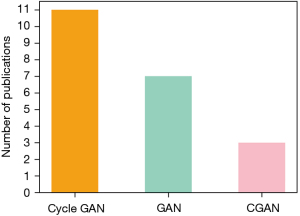

Figure 3 The distribution of the GAN applications in RT. GAN, Generative Adversarial Network; CGAN, Conditional GAN; Cycle GAN, Cycle-consistent Generative Adversarial Networks; RT, radiation therapy.

As mentioned above, when the researchers have paired data but do not require to generate the specific image according to the input class, the basic GAN was recommended as the start. Otherwise, the CGAN is your recommended selection. Finally, when only unpaired data, the Cycle GAN is the only choice for this task (27).

Limitations and future work

Though the GAN application has a strong power over image generation. There are still some limitations that need to be discussed. First, 3D GANs have a higher requirement in hardware which makes their deployment difficult in most hospitals, so, model compression or small models need to be considered in the future model design and deployment. Second, for plan and dose calculation, GAN-based applications have less time consumption compared with the traditional methods. However, most of the methods still cannot achieve real-time performance. So, the acceleration methods for GANs are still worth studying. Third, the GAN-based application has not been applied in the real-world clinical trial, which means it is still unclear how much the GAN can help radiotherapy doctors. In this way, the GAN deployment in the real world needs to be done in future works.

Conclusions

In conclusion, the GAN model has already been widely used in RT. Thanks to their ability to automatically learn the anatomical features from different modalities images, improve quality images, generate synthetic images and make less time consumption automatic dose and plan calculation. Even though the GAN model still cannot replace the radiotherapy doctors’ work, it still has great potential to enhance the radiologists' workflow. There are lots of opportunities to improve the diagnostic ability and decrease potential risks during radiotherapy and time cost for plan calculation.
